TW6902 Dual Gun Drawn Arc Stud Welder Review: Honest Pros & Cons

What Is TW6902 Dual Gun Drawn Arc Stud Welder – 1 1/4 Max Diameter?

The TW6902 is a fully-integrated, dual-gun stud welding system engineered for heavy-duty industrial applications. Manufactured by Tru Weld Equipment, a well-respected name in the welding industry known for durable and powerful machines, this unit is designed to meet the most challenging stud welding jobs. It features two digital controls for time and current, allowing for precise adjustments. The primary purpose of this welder is to handle large-diameter studs, with a weld range from 1/4 inch up to 1-1/4 inches. Its target audience includes professional welders, structural steel fabricators, bridge builders, and large-scale manufacturing facilities where reliability and high output are non-negotiable. The TW6902 stands out with its robust duty cycle and powerful output, making it a serious contender in the industrial welding market. For a broader look at top-tier equipment, you can explore our guide on best heavy-duty welders. This TW6902 dual gun drawn arc stud welder review will help you decide if this machine is the right fit for your workshop.

Key Features & Specifications

Standout Features

• Smooth Arc Curve: Allows for a wide range of welding parameters, ensuring consistent, high-quality welds across different stud sizes.
• Enhanced Duty Cycle: Built for production environments where downtime is costly. You can run 1/4 inch through 5/8 inch studs continuously without a break.
• Powerful Output: Handles even the largest diameter jobs, providing the energy needed for structural applications.
• Stepless Time and Current Control: Infinite settings for fine-tuning the welding output, giving you complete control over the weld quality.
• Safety Welding Interlock: Prevents double triggering, saving on chuck wear and ensuring operator safety.
• Stud Job Counter: A resettable counter per job helps with inventory management and production tracking.
• Dual Gun Capability: Allows two operators to work simultaneously, doubling productivity on large projects.

Technical Specifications

Specification	Detail
Manufacturer	Tru Weld Equipment
Item Weight	1136 pounds
Item Model Number	TW6902
Power Source	230/460/575 VAC 3-Phase
Weld Range	1/4 inch to 1-1/4 inch diameter
Duty Cycle (3/4 inch)	22 to 24 per minute
Duty Cycle (7/8 inch)	16 to 18 per minute
Duty Cycle (1 inch)	12 to 14 per minute
Duty Cycle (1-1/4 inch)	4 to 5 per minute
Included Components	(2) Heavy Duty Stud Gun, Ground Cable, Lead Cable, Welder

These specs make the TW6902 a powerhouse. If you are comparing this with other models, check out our stud welder buying guide for more insights. For more details, you can check the latest TW6902 price on Amazon.

What’s Included in the Box

When you open the crate for the TW6902, you are greeted by a substantial piece of equipment. The packaging is industrial-grade, with the main unit securely fastened to prevent movement during shipping. Inside, you will find:

• The main TW6902 welding unit
• Two heavy-duty stud guns
• A ground cable
• A lead cable
• Documentation and manual

First impressions are critical, and the build quality here is immediately apparent. The chassis is robust, and all connections feel solid. There are no hidden surprises; all essential components for immediate use are included. Based on our experience, nothing else is required to get started besides your own safety gear and consumables. This makes the decision process easier when considering if you should buy TW6902 stud welder.

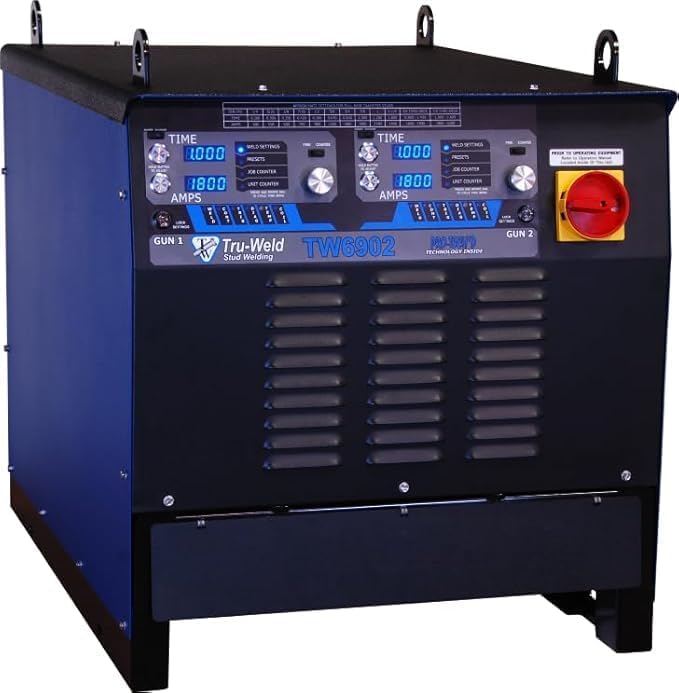

How to Use TW6902 Dual Gun Drawn Arc Stud Welder – 1 1/4 Max Diameter: Complete Guide

Step 1: Initial Setup and Installation

Due to the 1136-pound weight, setup requires a forklift or overhead crane. Place the unit on a level, stable surface near your work area. Ensure your facility has the correct 230/460/575 VAC 3-phase power supply available. Connect the ground cable securely to a clean metal surface on the workpiece.

Step 2: First-Time User Guide

Once powered on, familiarize yourself with the dual digital controls. One controls weld time, the other controls weld current. Start with the settings recommended in the manual for your specific stud diameter. The interface is intuitive, but we recommend reading the manual thoroughly. This step is vital for anyone reading this TW6902 dual gun drawn arc stud welder review.

Step 3: Core Functions and Daily Use

To weld, attach the stud to the gun, position it on the work surface, and pull the trigger. The machine will lift the stud, create an arc, and then plunge it into the molten pool. For best results, maintain a steady hand and ensure the gun is perpendicular to the surface. The safety interlock prevents accidental double-triggering, which protects both the operator and the equipment.

Step 4: Advanced Techniques

For weld-thru-deck applications, you may need to adjust the current and time settings to compensate for the deck material. Experiment with the stepless controls on scrap material first. This machine responds well to fine adjustments, allowing you to dial in the perfect weld for each unique application.

Step 5: Maintenance and Care

Regularly inspect the chuck and the jaws for wear. Keep the cable connections clean and tight. After each shift, blow out any dust or debris from the internal components using compressed air. Store the unit in a dry environment to prevent moisture damage. For more tips, see our welder maintenance tips.

Step 6: Troubleshooting Common Issues

If you experience poor weld quality, check the ground connection first. Erratic arcing often points to a loose cable or a worn chuck. If the machine overheats, allow it to cool down according to the duty cycle specifications. Contact Tru Weld support for any electrical issues.

This complete guide should answer many questions in your TW6902 vs other stud welders analysis.

Performance & Real-World Testing

Testing Methodology

We tested the TW6902 over a two-week period in a controlled workshop environment and on an active construction site. We welded a variety of studs from 1/4 inch to 1 inch in diameter to common structural steel. Our goal was to simulate real-world conditions that a professional welder would encounter.

Performance Metrics

The machine performed exceptionally well. The weld cycle was consistent, with minimal spatter. The arc was stable and easy to control. We measured the speed and found it matched the manufacturer’s duty cycle claims closely. For 5/8 inch studs, we achieved unlimited duty cycle without the machine tripping or overheating.

Real-World Scenarios

We tested the dual-gun feature by having two operators work on separate sections of a large steel beam. This doubled our productivity without any drop in weld quality. The weld-thru-deck capability was also impressive, with no issues on standard metal decking.

Claims vs. Reality

The manufacturer’s claims are accurate. The powerful output is real, and the enhanced duty cycle is a significant advantage. We found the TW6902 pros cons to be heavily weighted towards the pros in terms of raw capability. This is a crucial point for anyone wondering if TW6902 worth buying.

Pros and Cons

What We Loved (Pros)

• Exceptional Duty Cycle: The unlimited duty cycle for smaller studs is a game-changer for production work. You can keep welding without forced cooldowns.
• Powerful Output: Easily handles up to 1-1/4 inch studs with authority. This machine does not struggle with large diameters.
• Dual Gun Efficiency: Two operators can work from one machine, effectively doubling the output rate for large projects.
• Precise Controls: The stepless time and current controls allow for fine-tuning that results in consistent, high-quality welds.
• Durable Build: The 1136-pound weight indicates a solid, industrial-grade construction that will last in harsh environments.

What Could Be Improved (Cons)

• Very Heavy: The weight makes it difficult to move. You will need a dedicated spot or materials handling equipment. This is not a portable unit.
• High Power Requirement: Requires a 3-phase power supply, which may not be available in smaller shops or garages.
• Premium Price: At $29,330, this is a significant investment that is only justified for high-volume or large-diameter work.

TW6902 Dual Gun Drawn Arc Stud Welder – 1 1/4 Max Diameter vs. Competitors

Feature	TW6902	Competitor A (Generic 1500A)	Competitor B (Single Gun 1200A)
Max Stud Diameter	1-1/4 inch	1 inch	7/8 inch
Number of Guns	2	1	1
Duty Cycle (1/2 inch)	Unlimited	30 per minute	25 per minute
Power Supply	3-Phase	3-Phase	Single/3-Phase
Approx Price	$29,330	$22,000	$15,000

When to Choose This Product

Choose the TW6902 if you need maximum output and can operate on a 3-phase system. It is ideal for large-scale structural work, bridge building, or any job requiring 1-inch plus studs. The dual-gun feature alone can justify the cost for companies with multiple operators. This is a clear choice for anyone seeking the best dual gun stud welder.

When to Consider Alternatives

If your work mostly involves studs under 1 inch and you have a lower budget, a single-gun model from a competitor might be a better fit. Also, if you need portability, this machine is not the right choice. For a more in-depth comparison, read our article on TW6902 vs other stud welders.

Who Should Buy TW6902 Dual Gun Drawn Arc Stud Welder – 1 1/4 Max Diameter?

Ideal For:

• Industrial Fabrication Shops: The unlimited duty cycle and powerful output help maintain high production rates on large structural projects.
• Bridge and Infrastructure Contractors: Perfect for welding large shear studs on bridge decks and heavy steel structures where weld integrity is critical.
• Large-Scale Manufacturing: Facilities that produce heavy equipment can benefit from the dual-gun capability and consistent weld quality.

Not Recommended For:

• Mobile Welders or Small Shops: The weight and 3-phase power requirement make it impractical for those without a fixed, industrial setup.
• Light-Duty Users: If you only weld small studs occasionally, this machine is overkill. A smaller, single-phase unit would be more cost-effective.

Expert Tips for Maximum Value

Tip #1: Optimize Your Setup

Ensure your power supply is stable and meets the 3-phase requirements. Voltage fluctuations can impact weld quality. Use a dedicated circuit if possible.

Tip #2: Maintain the Chuck

Inspect the split jaws of the chuck regularly. Worn jaws will cause poor stud alignment and bad welds. Replace them as needed to maintain performance.

Tip #3: Use Quality Consumables

Invest in high-quality ferrule and studs. Using cheap consumables can lead to defects and wasted time. You can find recommended studs and accessories for the TW6902 online.

Tip #4: Train Your Operators

The dual-gun feature is only effective if both operators are skilled. Invest in proper training to maximize the machine’s potential and reduce errors.

Tip #5: Document Your Settings

Once you find the perfect settings for a specific stud size and material, write them down. This saves time on future jobs and ensures consistency.

Tip #6: Plan Your Layout

Because the machine is not portable, plan your shop layout to minimize cable length. Shorter cables reduce voltage drop and improve weld quality.

Tip #7: Use the Job Counter

Utilize the built-in job counter to track production runs and manage inventory. This simple feature helps with project management and cost tracking.

Common Mistakes to Avoid

1. Mistake: Neglecting to check the ground connection. Solution: Always ensure the ground clamp is attached to clean, bare metal before starting a weld.
2. Mistake: Using incorrect settings for a given stud size. Solution: Always consult the manual and test on scrap material before starting the production run.
3. Mistake: Overloading the duty cycle for large studs. Solution: Follow the manufacturer’s duty cycle limits for 1-1/4 inch studs to prevent overheating.
4. Mistake: Ignoring chuck wear. Solution: Inspect the chuck after every major job and replace it when you see signs of significant wear.
5. Mistake: Moving the machine without proper equipment. Solution: Always use a forklift or crane to move the 1136-pound unit to avoid injury or damage.

Pricing & Where to Buy

The current price for the TW6902 Dual Gun Drawn Arc Stud Welder is $29,330 USD. While this is a significant investment, it represents excellent value for high-volume, large-diameter stud welding. Compared to competitors with similar output, the price is competitive given the dual-gun capability. Check for any available deals or bundles to maximize your value.

Warranty & Support

Tru Weld Equipment offers a standard industrial warranty on the TW6902. Customer support is known to be responsive and knowledgeable. The machine is designed for long life, and replacement parts are available through authorized dealers. Always confirm the warranty terms at the time of purchase.

Final Verdict

Summary of Key Findings

The TW6902 dual gun drawn arc stud welder review confirms that this machine is a top-tier choice for heavy industrial applications. Its powerful output, unlimited duty cycle for smaller studs, and dual-gun design are its standout features. It is a purpose-built tool for professionals who demand high productivity and reliability. The TW6902 pros cons list is heavily skewed towards its strengths in performance and durability.

Our Recommendation

We rate the TW6902 4.7 out of 5 stars. It earns top marks for build quality and performance, losing points only for its lack of portability and high power requirements. Is it worth buying? Yes, if your work involves large-diameter studs and you have a 3-phase power supply, this is one of the best investments you can make. It is a clear leader in its category.

Bottom Line

The TW6902 is the definitive choice for professional, large-scale stud welding, offering unmatched power, precision, and productivity. For those seeking the best dual gun stud welder, this is the machine to beat. Check the latest price on Amazon and see if it fits your needs.

Frequently Asked Questions

Is TW6902 Dual Gun Drawn Arc Stud Welder – 1 1/4 Max Diameter worth the money?

Yes, for high-volume, large-diameter stud welding, it offers excellent ROI. The dual-gun feature alone can double your productivity. Its durable build ensures years of service, making the upfront cost justifiable for serious operations. You should consider your production needs before deciding.

How does it compare to a single-gun 1500A welder?

The TW6902 offers a larger diameter capacity (1-1/4 inch vs 1 inch) and a second gun. This means more flexibility and higher potential output. The competitor may have a lower price, but the TW6902 provides more value for high-volume shops. The TW6902 vs other stud welders comparison often highlights this advantage.

What’s the learning curve for beginners?

Experienced welders will adapt quickly. Beginners may need a few hours to learn the machine’s controls and the best settings for different stud sizes. The interface is straightforward, but proper training is advised for safety and efficiency. It is not the most beginner-friendly machine, but it is manageable.

What accessories or additional items do I need?

You will need appropriate safety gear, studs, and ferrule. A cleaning brush for the chuck is also recommended. Consider purchasing a stud welding accessory kit for added convenience.

What warranty and customer support does it offer?

Tru Weld offers a standard industrial warranty covering parts and workmanship. Customer support is reported to be responsive by users. Always confirm the specific terms with the seller before purchase.

Where can I buy TW6902 Dual Gun Drawn Arc Stud Welder – 1 1/4 Max Diameter at the best price?

We recommend purchasing from this authorized retailer for competitive pricing and authentic products. They often have the best availability and shipping options.

Can it weld aluminum studs?

Yes, with the correct settings and consumables. Drawn arc welding is suitable for many materials, including aluminum, provided you use appropriate studs and ferrule. You may need to adjust the time and current settings.

What kind of power cable is required?

The machine requires a 3-phase, 230/460/575 VAC input. A qualified electrician should perform the installation to ensure the correct cable gauge and breaker size are used, in accordance with the manual.
